| Brand Name : | GuangGao |
| Model Number : | D |
| Certification : | ISO CESI UL KEMA |
| Payment Terms : | T/T L/C |
| Dry-type Amorphous Alloy 10kV Distribution Transformer SC(B)H17-NX2 Energy Efficiency Level 2 | ||||||||
| Capacity(kVA) | Voltage Combination | Vector group | No load loss(W) | Full Load Loss (W) | Short Circuit Impedance(%) | |||
| HV(kV) | H.V. Tapping Range | LV(kV) | F(120℃) | H(145℃) | ||||
| 30 | 6 6.3 6.6 10 10.5 11 | ±5%/±2×2.5% | 0.4 | Dyn11 Yyn0 | 60 | 640 | 685 | 4 |
| 50 | 75 | 900 | 965 | |||||
| 80 | 100 | 1240 | 1330 | |||||
| 100 | 110 | 1415 | 1520 | |||||
| 125 | 130 | 1665 | 1780 | |||||
| 160 | 145 | 1915 | 2050 | |||||
| 200 | 170 | 2275 | 2440 | |||||
| 250 | 195 | 2485 | 2665 | |||||
| 315 | 235 | 3125 | 3355 | |||||
| 400 | 265 | 3590 | 3850 | |||||
| 500 | 305 | 4390 | 4705 | |||||
| 630 | 360 | 5290 | 5660 | |||||
| 630 | 350 | 5365 | 5760 | 6~8 | ||||
| 800 | 510 | 6265 | 6715 | |||||
| 1000 | 470 | 7315 | 7885 | |||||
| 1250 | 550 | 8720 | 9335 | |||||
| 1600 | 615 | 10555 | 11320 | |||||
| 2000 | 850 | 13005 | 14005 | |||||
| 2500 | 1020 | 15445 | 16605 | |||||
* Above specification may be changed to improve performance.
* Transformer of other specification than listed above can be made to order.

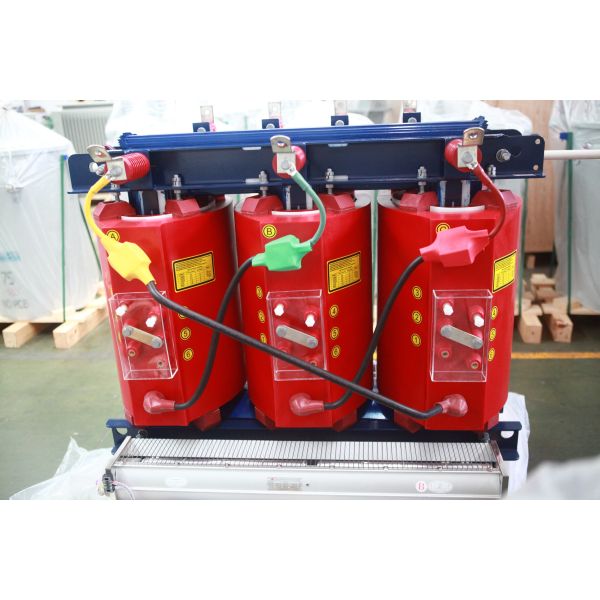

SC(B)H17-NX2 (Energy Efficiency Level 2):This 10kV dry-type amorphous alloy model features the upgraded "NX2" design. The heat dissipation system is changed to a combined mode of forced air cooling and natural cooling, reducing the temperature rise by 10K at rated capacity compared to the NX3 version. The insulation level is upgraded to Class H, which can withstand a high temperature of 180℃. With Level 2 energy efficiency combined with the low-loss advantage of the iron core, the comprehensive loss is reduced by 25% compared to the SC(B)H15 series. It is suitable for complex dry-type power distribution environments with large load fluctuations and high ambient temperatures, such as metallurgy and mining industries. Additionally, the iron core adopts a vacuum annealing process, ensuring stronger magnetic performance stability.
Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulsforme testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.
The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.
|
|
