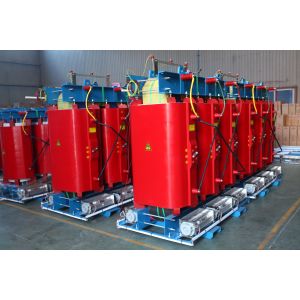

Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

Guangzhou Guanggao High Voltage Electric Apparatus Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3 from wholesalers

    Buy cheap Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3 from wholesalers
    • Buy cheap Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3 from wholesalers
    • Buy cheap Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3 from wholesalers
    • Buy cheap Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3 from wholesalers
    • Buy cheap Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3 from wholesalers

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

    Ask Lasest Price
    Brand Name : GuangGao
    Model Number : D
    Certification : ISO CESI UL KEMA
    Payment Terms : T/T L/C
    • Product Details
    • Company Profile

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

    Dry-type amorphous alloy 10kV distribution transformer SC(B)H15-NX3 energy efficiency level 3
    Product Specifications
    Dry-type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3
    Capacity(kVA)Voltage CombinationVector groupNo load loss(W)Full Load Loss (W)Short Circuit Impedance(%)
    HV(kV)H.V. Tapping RangeLV(kV)F(120℃)H(145℃)
    30

    6 6.3 6.6 10 10.5 11

    ±5%/±2×2.5%0.4Dyn11 Yyn0707107604
    509010001070
    8012013801480
    10013015701690
    12515018501980
    16017021302280
    20020025302710
    25023027602960
    31528034703730
    40031039904280
    50036048805230
    63042058806290
    630410496064006~8
    80048069607460
    100055081308760
    1250650969010370
    16007601173012580
    200010001445015560
    250012001717018450

    * Above specification may be changed to improve performance.

    * Transformer of other specification than listed above can be made to order.

    Product Overview
    • Model Interpretation
    As a cost-effective option for rural and suburban power distribution, the technical design of S(B)H15-NX3 focuses on balancing ultra-low no-load loss with robust environmental adaptability—addressing the core pain points of prolonged standby operation in less developed power grids. The "S(B)" identifier underscores its dual functional advantages: "S" represents three-phase power supply (ensuring stable electricity distribution across scattered rural users), while "B" denotes enhanced insulation performance (reinforcing resistance to moisture and dust common in suburban outdoor settings). The design serial number "H15" highlights its key material upgrade: an amorphous alloy core, which cuts no-load losses by over 60% compared to traditional silicon steel core transformers—directly translating to lower standby electricity costs for scenarios where equipment operates in no-load mode for 8-12 hours daily.

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3


    Professional Equipment

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

    Application

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

    Export

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

    Certificate(Power transformers with CE, ISO, KEMA, UL certificates and test reports.)

    Dry Type Amorphous Alloy 10kV Distribution Transformer SC(B)H15-NX3 Energy Efficiency Level 3

    Company Profile

    Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulsforme testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

    The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.
